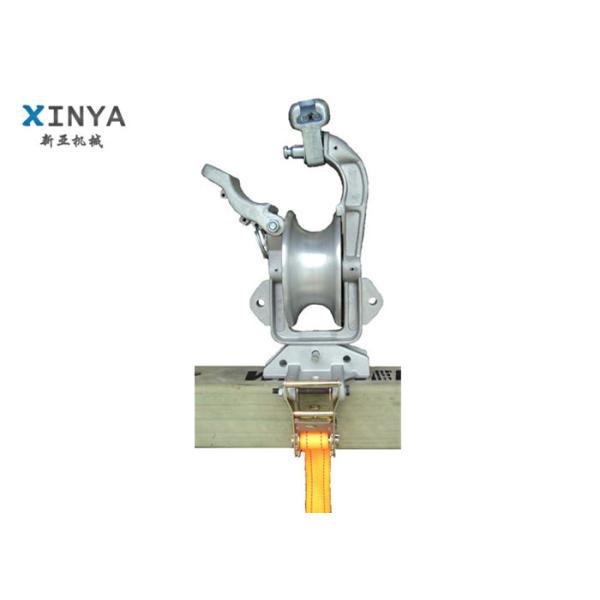

SH10TY Universal Crossarm Mounted Stringing Block with 7” Aluminum Wheel | Overhead Transmission Line Pulley
Overview
The SH10TY Universal Crossarm Mounted Stringing Block is a high-quality overhead line pulley designed for smooth and safe conductor movement during transmission line construction. Equipped with a 7” aluminum wheel, this universal block is lightweight yet durable, making it ideal for medium- to high-voltage cable installation, stringing, and maintenance.
Its crossarm mounting design ensures stable attachment to towers and poles, while the aluminum wheel reduces friction and prevents conductor damage, improving efficiency and safety in field operations.
Key Features
-
7” Aluminum Wheel
Lightweight, corrosion-resistant, and ensures smooth cable movement.
-
Universal Design
Compatible with a wide range of conductor types and diameters.
-
Crossarm Mounting
Easy to install on transmission towers and utility poles.
-
Durable Steel Frame
Provides robust support for overhead line stringing operations.
-
Weather-Resistant Construction
Suitable for outdoor installation in harsh environments.
-
Reduces Cable Wear
Smooth rotation prevents conductor damage during stringing.
Product Highlights
-
Ideal for overhead transmission line construction and maintenance
-
Lightweight and portable for easy field deployment
-
Reduces conductor friction and mechanical stress
-
Durable aluminum wheel ensures long-term performance
-
Works with single and bundled conductors
Advantages
-
Enhances worker safety during cable installation
-
Minimizes cable damage and prolongs conductor lifespan
-
Easy to install and operate on towers or poles
-
Low maintenance and corrosion-resistant for outdoor use
-
Compatible with standard cable grips, winches, and accessories
Applications
-
Overhead transmission line conductor stringing
-
Medium- and high-voltage cable installation
-
Substation and distribution line projects
-
Utility repair, maintenance, and replacement
-
Integration with cable rollers, grips, and pulling equipment
Data Sheet
| Item Numer | 10295 |
| Rated load(KN) | 10 |
| Sheave diameter(mm) | 178x76 |
| Weight(Kg) | 4.3 |
| Applicable crossarm width of caliper(mm) | 99-175 |
| Height(mm) | 95-159 |
| Caliper weight(kg) | 1.6 |
Notes:It is a versatile block,it either used in the head of insulartor string or fixed on the caliper of crossarm.
FAQ
Q1: Can the wheel material be customized?
Yes. Aluminum, nylon, or steel wheel options are available depending on the project.
Q2: What conductor sizes can it handle?
It supports single and bundled conductors of various diameters.
Q3: Is it suitable for outdoor use?
Yes, it is corrosion-resistant, UV-resistant, and weatherproof.
Q4: Can the working load be adjusted?
Yes. Working load can be customized according to installation requirements.
Q5: Is it compatible with other stringing tools?
Absolutely. It works seamlessly with cable grips, rollers, and winches.
